Glass Flakes

High-Performance C-Glass Filler for Corrosion-Resistant Coating and Lining Systems

Overview

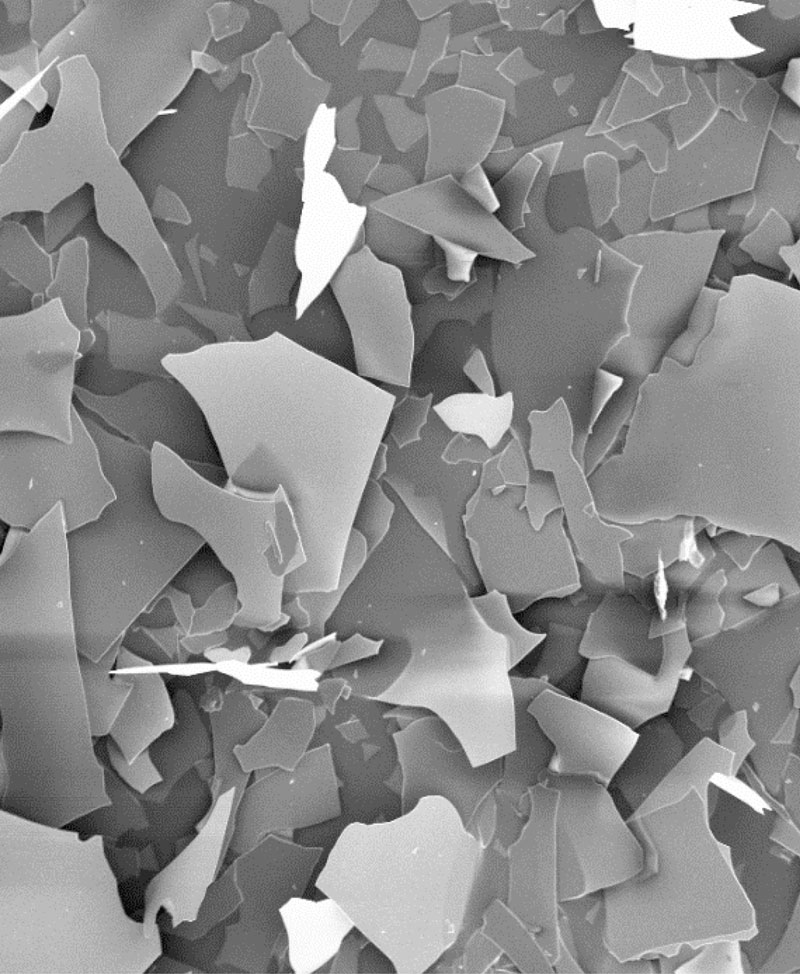

Glass Flake, offered by FRP Services & Company Europe, is a precision-engineered additive made from chemically stable C-glass, designed to enhance the barrier properties and service life of protective coatings and linings. Characterized by its ultra-thin, flat particle shape—approximately 5 microns in thickness—and available in a wide particle size range (10–4,000 microns), it delivers measurable improvements in coating performance, especially in corrosive and high-exposure environments.

Engineered for high-spec industrial applications, Glass Flake is integrated into resin systems used to protect steel and concrete assets in the oil & gas, energy, marine, and chemical processing industries.

PROPERTIES

  • C-glass platelet of about 5µm thick and 10~4,000µm wide
  • Extends life of protective coating : dispersed through the coating, prevents the ingress of water vapour and chemical solutions
  • Prevents cracking and peeling : provides a thermal stabilization layer in the protective coating
  • Improves wear resistance : increases hardness of epoxy and polyester resin coatings
  • Improves chemical resistance: Borosilicate C-glass makes good resistance to chemical attacks, compared to other types of glass
Type of glass SiO2 Al2O3 CaO MgO B2O3 Na2O+K2O ZnO
C glass (%) 65-72 1-7 4-11 0-5 0-8 9-13 0-6
E glass (%) 52-56 12-16 16-25 0-6 5-13 0-0.8

Microglas® Glasflake is ideal for use in vinyl ester, epoxy, acrylic paints and acrylic coatings as a barrier against corrosive attacks by chemicals and moisture.

Primary Applications

Glass Flake is primarily used as a functional filler in anti-corrosion coatings and linings where long-term resistance to moisture, chemicals, and mechanical degradation is required. Key application areas include:

Oil Storage Tanks

Internal and external coatings benefit from reduced permeability and enhanced resistance to hydrocarbons, vapors, and condensation, helping prevent under-film corrosion and structural degradation.

Refinery Pipelines and Structural Steelwork

Widely used in systems exposed to thermal variation, chemical vapors, and aggressive process environments. Glass Flake enhances chemical barrier performance and coating longevity on pipelines, vessels, stacks, and exposed structural components.

Offshore Platforms

Used in splash zones, decks, risers, and submerged areas to improve resistance to seawater, wave impact, and UV exposure. Glass Flake contributes to longer maintenance intervals and reduced lifecycle costs.

Offshore Wind Turbines

Applied in protective systems for towers, nacelles, and support structures. Offers resilience to high humidity, salt spray, and temperature cycling in harsh marine climates.

Fire Protection Networks

Pipes and fittings in water-based suppression systems are vulnerable to internal corrosion from stagnant or oxygenated water. Glass Flake improves coating resistance to standing moisture and microbiologically influenced corrosion (MIC).

Functional Advantages

Reduced Permeability

Forms a dense, multi-layered structure within the coating, which slows the ingress of water, oxygen, and chemical contaminants.

Enhanced Corrosion Resistance

Extends coating service life by improving resistance to pitting, blistering, and under-film rusting, particularly on steel substrates in immersion or atmospheric conditions.

Chemical Resistance

The C-glass composition offers stability across a wide pH range, making it compatible with acidic, alkaline, and hydrocarbon-rich exposures.

Thermal and Mechanical Durability

Improves coating behavior under thermal cycling, abrasion, and mechanical stress. Helps maintain structural integrity in both ambient and elevated temperature applications.

Versatile Resin Compatibility

Suitable for epoxy, polyester, and vinyl ester systems. Allows for application via brush, roller, airless spray, or trowel depending on formulation.

Functional Advantages

Parameter Typical Value
Glass Type C-glass
Flake Thickness Approx. 5 microns
Particle Size Range 10–4,000 microns
Chemical Resistance High (broad pH range)
Thermal Stability Up to ~500°C (resin dependent)
Resin Compatibility Epoxy, polyester, vinyl ester
Appearance Flat, high-surface-area flakes

Industries Served

  • Oil & Gas Infrastructure
  • Petrochemical Processing
  • Fire Protection Systems
  • Offshore Energy Platforms
  • Wind Energy (Offshore)
  • Marine and Shipbuilding
  • Power Generation and Utilities
  • Protective Coating Manufacturers
  • Engineering Contractors (EPC)

Packaging and Supply Options

  • Standard packaging: 20 kg PE-lined paper bags
  • Bulk packaging: 500 kg big bags
  • Custom particle size distributions available on request
  • Distributed across Europe via regional logistics network
  • Supplied with full documentation: TDS, SDS, and REACH compliance

Compliance and Quality

Glass Flake is manufactured to high quality control standards and complies with:

  • REACH (EC 1907/2006)
  • Applicable environmental and materials regulations for coatings
  • Supplied with batch-specific Certificates of Analysis upon request

SPECIFICATIONS

Item Glass Specific Gravity Thickness (mm) Particle Size Distribution (mm) Loss of Ignition Surface Treatment Agent
> 1700 1700 - 1700 - 300 300 - 150 150 - 45 < 45
RCF-015 C 2.5 Avg.5±2 0 12 or less 88 or more
RCF-160 C 2.5 Avg.5±2 0 10 or less 65 or more 25 or less
RCF-600 C 2.5 Avg.5±2 0 80 or more 20 or less
RCF-160A C 2.5 Avg.5±2 0 10 or less 65 or more 25 or less Aminosilane
RCF-160N C 2.5 Avg.5±2 0 10 or less 65 or more 25 or less Acrylsilane
RCF-600N C 2.5 Avg.5±2 0 80 or more 20 or less Acrylsilane
RCF-2260 Avg1.0±2 0 10 or more 75 or less 90 or less
RCF-2300 C Avg.5±2 0 20 or more 85 or less 80 or less Borosilicate

Microglas® Glass flake is available in a range of surface treatments to suit different resins:
N (Acryl silane) for vinyl ester / A (Amino silane) for Epoxy.

PACKAGING

Microglas® Glass Flake is supplied in moisture proof paper bags, each weighing 20kg (net weight).
For bulk shipments, the bags of glass flake are palletised and further
protected by cardboard and polyethylene wrapping:

RCF-015 48 x 20 kg bags = 960 kg total net weight per pallet

RCF-160 28 x 20 kg bags = 560 kg total net weight per pallet

RCF-600 14 x 20 kg bags = 280 kg total net weight per pallet

RCF-2300 12 x 20 kg bags = 240 kg total net weight per pallet

RCF-160A 28 x 20 kg bags = 560 kg total net weight per pallet

RCF-160N 36 x 20 kg bags = 720 kg total net weight per pallet

RCF-600N 20 kg in a moisture resistant paper sack

RCF-2260 16 x 20 kg bags = 320 kg total net weight per pallet
