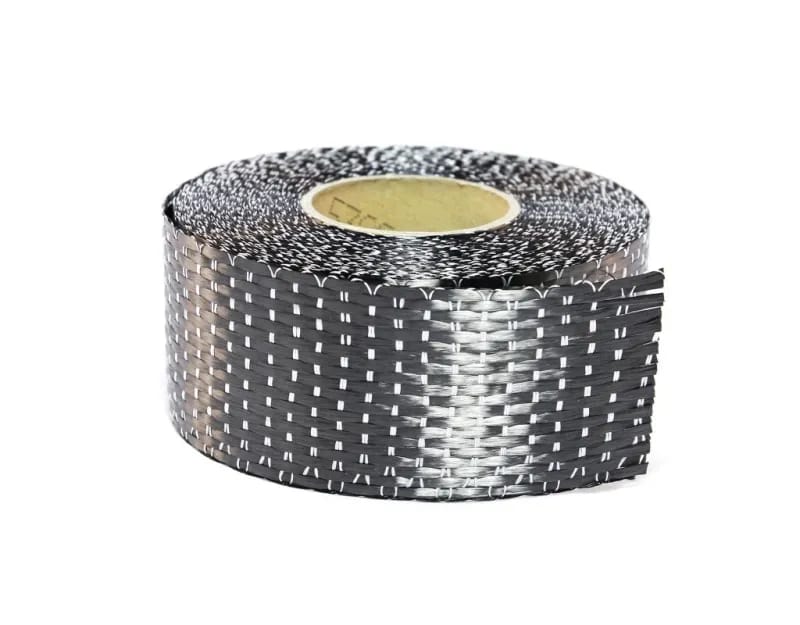

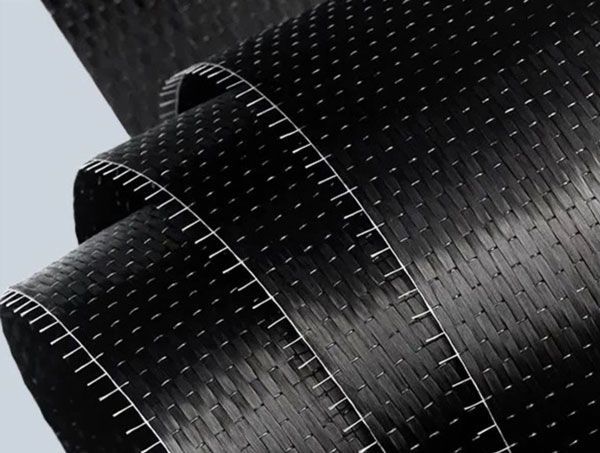

Unidirectional CARBON FABRICS

UD600 - 500MM

TECHNICAL DATA SHEET (TDS)

TECHNICAL DATA SHEET (TDS)
UD Carbon Fabric N° SF2023-03
Date of previous issue: 08/10/2023
Date of issue:
Version: 1
Product/Prodotto/Produit:
Reference:
Weight/ Gramatura / Masse surfacique (g/m2)		 UD CARBON FABRIC
UD 600
600 +/-5%

PRODUCT DESCRIPTION

PRODUCT DESCRIPTION
Weave/Armatura/Armure
Warp/Ordito/Chaine
Weft/Trama/Trame
Edges/Giro/Bordure
Weight / Gramatura / Masse surfacique (+/-5%)		 UNIDIRECTIONAL warp/ordito/chaine
3,75 x Aksaca® 24K A42
E glass Hotmelt
E glass Hotmelt
600g/m2

INPUT CARBON SPECIFICATION

INPUT CARBON SPECIFICATION
Tensile strength                       ISO10618
Tensile Modulus                      ISO10618
Strain                                         ISO10618
Weight (gx1000m)		 4200                  Mpa
240                     Mpa
1.8                         %
1600                   Tex

PACKING

PACKING
Indiviudal PE bag – sacco di PE per ogni rotolo – sac PE pour chaque rouleau
Inner core/Anima/Tube interne (diameter)                                 3′
Standard width/ Altezza/Largeur (-0/+2cm)* cm                          50
Standard Length/Lunghezza/longueur (+/-5%) ML ML                         50
Net weight/Peso netto /Poids net (+/-5%) Kg                          30
Download UD600 - 500MM PDF

UD300 - 500MM

TECHNICAL DATA SHEET (TDS)

TECHNICAL DATA SHEET (TDS)
UD Carbon Fabric N° SF2023-01
Date of previous issue: 08/10/2023
Date of issue:
Version: 1
Product/Prodotto/Produit:
Reference:
Weight/ Gramatura / Masse surfacique (g/m2)		 UD CARBON FABRIC
UD 300
300 +/-5%

PRODUCT DESCRIPTION

PRODUCT DESCRIPTION
Weave/Armatura/Armure
Warp/Ordito/Chaine
Weft/Trama/Trame
Edges/Giro/Bordure
Weight / Gramatura / Masse surfacique (+/-5%)		 UNIDIRECTIONAL warp/ordito/chaine
1,9 x Aksaca® 24K A42
E glass Hotmelt
E glass Hotmelt
300g/m2

INPUT CARBON SPECIFICATION

INPUT CARBON SPECIFICATION
Tensile strength                       ISO10618
Tensile Modulus                      ISO10618
Strain                                         ISO10618
Weight (gx1000m)		 4200                  Mpa
240                     Mpa
1.8                         %
1600                   Tex

PACKING

PACKING
Indiviudal PE bag – sacco di PE per ogni rotolo – sac PE pour chaque rouleau
Inner core/Anima/Tube interne (diameter)                                 3′
Standard width/ Altezza/Largeur (-0/+2cm)* cm                          50
Standard Length/Lunghezza/longueur (+/-5%) ML ML                         50
Net weight/Peso netto /Poids net (+/-5%) Kg                          15
Download UD300-500mm PDF

UD400 - 500MM

TECHNICAL DATA SHEET (TDS)

TECHNICAL DATA SHEET (TDS)
UD Carbon Fabric N° SF2023-02
Date of previous issue: 08/10/2023
Date of issue:
Version: 1
Product/Prodotto/Produit:
Reference:
Weight/ Gramatura / Masse surfacique (g/m2)		 UD CARBON FABRIC
UD 400
420 +/-5%

PRODUCT DESCRIPTION

PRODUCT DESCRIPTION
Weave/Armatura/Armure
Warp/Ordito/Chaine
Weft/Trama/Trame
Edges/Giro/Bordure
Weight / Gramatura / Masse surfacique (+/-5%)		 UNIDIRECTIONAL warp/ordito/chaine
2,6 x Aksaca® 24K A42
E glass Hotmelt
E glass Hotmelt
400g/m2

INPUT CARBON SPECIFICATION

INPUT CARBON SPECIFICATION
Tensile strength                       ISO10618
Tensile Modulus                      ISO10618
Strain                                         ISO10618
Weight (gx1000m)		 4200                  Mpa
240                     Mpa
1.8                         %
1600                   Tex

PACKING

PACKING
Indiviudal PE bag – sacco di PE per ogni rotolo – sac PE pour chaque rouleau
Inner core/Anima/Tube interne (diameter)                                 3′
Standard width/ Altezza/Largeur (-0/+2cm)* cm                          50
Standard Length/Lunghezza/longueur (+/-5%) ML ML                         50
Net weight/Peso netto /Poids net (+/-5%) Kg                          21
Download UD400-500mm PDF
